Packaged Pump Sets

Lowara Avensor Smart Monitor

Xylem/Lowara Avensor is a cloud-based digital service solution for managing your water infrastructure assets.

Product video - Xylem Avensor overview

To improve management of your assets, Avensor provides connectivity and remote data access via a web or mobile app to your assets, allowing you to gather alarms, operating data and additional insights to reduce the risk of downtime and better use of your resources.

Not only can Avensor monitor your pumps via a connected Hydrovar, but via connection of a modem it will monitor other connected devices such as water meters. Alarms can be sent to multiple persons via either text messages, email or app notifications.

The first year subscription is included free with the Avensor External box, and annual renewals can be purchased at low cost.

When supplied fitted as part of a Hydrovar X+ packaged pump station, an antenna with a 1.5 metre cable is included. Extension cables and alternative antenna & cable options can be provided

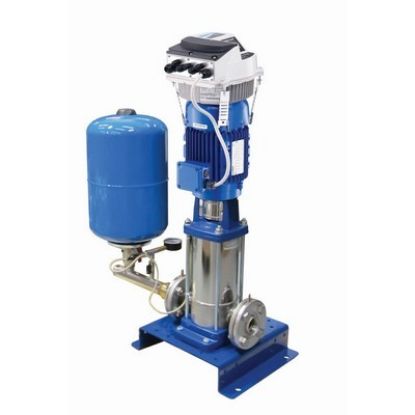

Lowara GHV10 Single Pump Set

The Lowara GHV series booster sets are fully automatic booster sets for water supply, water pressure increase and water transfer in condominiums, office buildings, hotels, public buildings, industries and other applications. The GHV series is equipped with 2-4 e-SV vertical multistage pumps, each one fitted with a Hydrovar HVL variable frequency drive, pressure transmitters and a control panel, all mounted on a frame for easy installation. The GHV series is easy to program, designed for maximum energy efficiency and can communicate with a BMS system via Modbus or BACnet. The GHV series is certified by WRAS, ACS and D.M. 174 for use with potable water. GHV booster sets are available with up to 8 pumps. Other pump types and other special versions are available on request.

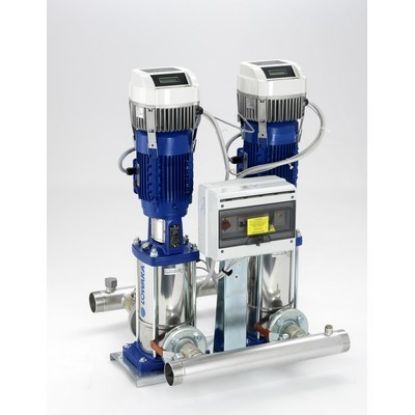

Lowara GHV20 Twin Pump Set

The Lowara GHV series booster sets are fully automatic booster sets for water supply, water pressure increase and water transfer in condominiums, office buildings, hotels, public buildings, industries and other applications. The GHV series is equipped with 2-4 e-SV vertical multistage pumps, each one fitted with a Hydrovar HVL variable frequency drive, pressure transmitters and a control panel, all mounted on a frame for easy installation. The GHV series is easy to program, designed for maximum energy efficiency and can communicate with a BMS system via Modbus or BACnet. The GHV series is certified by WRAS, ACS and D.M. 174 for use with potable water. GHV booster sets are available with up to 8 pumps. Other pump types and other special versions are available on request.

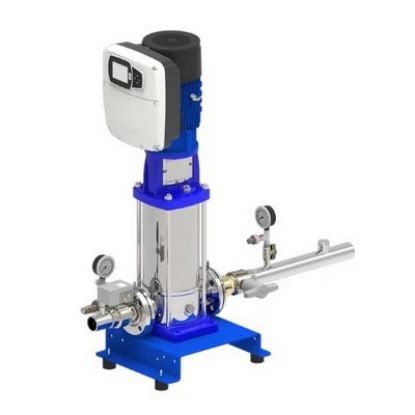

Lowara GHVX 10 Single Pump Set

Xylem/Lowara GHV series booster sets are variable speed pumping stations with one to four e-SVX series multistage vertical pumps. Each pump is equipped with a Hydrovar X+ frequency converter. This means that all the pumps are capable of variable speed operation. Special sets with up to 8 pumps are also available on request. These types of systems improve the comfort of the end user, reducing noise emissions. Thanks to the gradual switching off of the pumps, “water hammer” is also reduced.

GHV10: The e-SVX pump is connected to a suction manifold complete with shut-off valve and minimum pressure switch. On the delivery side there are a manifold, non-return valve and shut-off valve. A 12 litre 16 bar pressure vessel is supplied for the customer to fit.

GHV series booster sets with e-SVX pumps are certified for use with drinking water

We reccomend the addition of the Xylem/Lowara Avensor Smart Monitoring & Control system for real-time data and early warning from connected devices.

Suction & Discharge configurations:
Type F - Discharge opposite suction (ie straight through). BSP threaded connections
Type G - Discharge opposite suction (ie straight through). Flanged connections
Type G-V9 - Discharge opposite suction (ie straight through with 90° upstand on discharge). Flanged connections
Type R - Discharge over suction (ie both on same side). BSP threaded connections

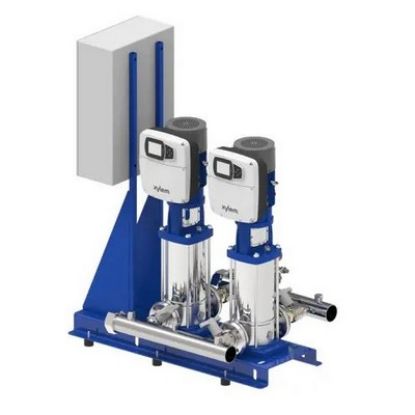

Lowara GHVX 20 Twin Pump Set

Xylem/Lowara GHV series booster sets are variable speed pumping stations with one to four e-SVX series multistage vertical pumps. Each pump is equipped with a Hydrovar X+ frequency converter. This means that all the pumps are capable of variable speed operation. Special sets with up to 8 pumps are also available on request. These types of systems improve the comfort of the end user, reducing noise emissions. Thanks to the gradual switching off of the pumps, “water hammer” is also reduced.

GHV20: The pumps are assembled on a single base. Shut-off valves and check valves are present for each pump. Suction and delivery manifolds connect the entire system. The control panel is secured to the same base by means of a bracket. A 12 litre 16 bar pressure vessel is supplied for the customer to fit.

GHV series booster sets with e-SVX pumps are certified for use with drinking water

We reccomend the addition of the Xylem/Lowara Avensor Smart Monitoring & Control system for real-time data and early warning from connected devices.

Suction & Discharge configurations:
Type F - Discharge opposite suction (ie straight through). BSP threaded connections
Type G - Discharge opposite suction (ie straight through). Flanged connections
Type G-V9 - Discharge opposite suction (ie straight through with 90° upstand on discharge). Flanged connections
Type R - Discharge over suction (ie both on same side). BSP threaded connections

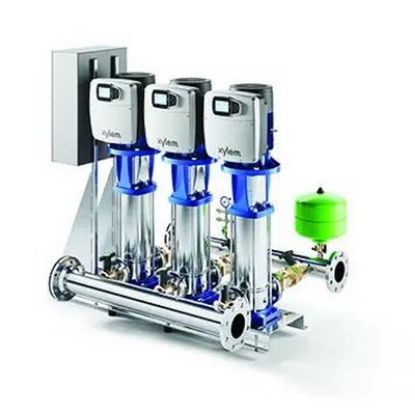

Lowara GHVX 30 Triple Pump Set

Xylem/Lowara GHV series booster sets are variable speed pumping stations with one to four e-SVX series multistage vertical pumps. Each pump is equipped with a Hydrovar X+ frequency converter. This means that all the pumps are capable of variable speed operation. Special sets with up to 8 pumps are also available on request. These types of systems improve the comfort of the end user, reducing noise emissions. Thanks to the gradual switching off of the pumps, “water hammer” is also reduced.

GHV30: The pumps are assembled on a single base. Shut-off valves and check valves are present for each pump. Suction and delivery manifolds connect the entire system. The control panel is secured to the same base by means of a bracket. A 12 litre 16 bar pressure vessel is supplied for the customer to fit.

GHV series booster sets with e-SVX pumps are certified for use with drinking water

We reccomend the addition of the Xylem/Lowara Avensor Smart Monitoring & Control system for real-time data and early warning from connected devices.

Suction & Discharge configurations:
Type F - Discharge opposite suction (ie straight through). BSP threaded connections
Type G - Discharge opposite suction (ie straight through). Flanged connections
Type G-V9 - Discharge opposite suction (ie straight through with 90° upstand on discharge). Flanged connections
Type R - Discharge over suction (ie both on same side). BSP threaded connections

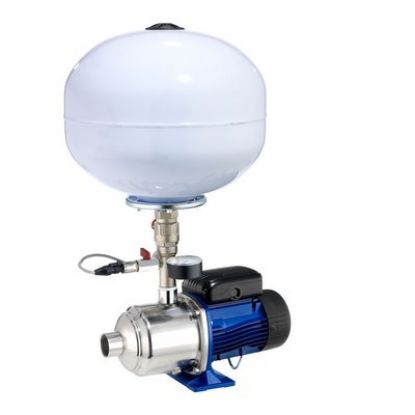

Lowara SMB10 HM Pump

The Lowara SMB series is a variable speed booster set range, designed for water pressure boosting and transfer in applications such as apartments, single- and multi-family houses, condominiums, residential buildings, Hotels, restaurants, spas, Industrial applications and others. The SMB feature variable speed thanks to permanent magnet motors and integrated variable frequency drives. This ensures energy savings and quiet operation.

SMB booster sets are available with one, two or three pumps using either the e-HME series (horizontal multistage pumps) or the e-SVE series (vertical multistage pumps).

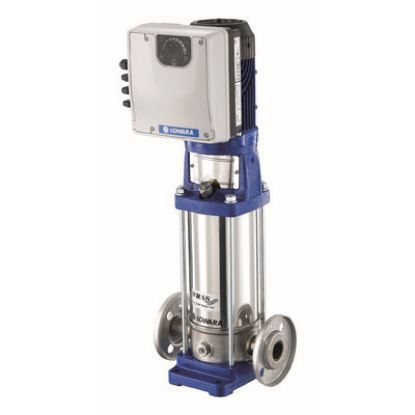

Lowara SMB10 SV Pump

The Lowara SMB series is a variable speed booster set range, designed for water pressure boosting and transfer in applications such as apartments, single- and multi-family houses, condominiums, residential buildings, Hotels, restaurants, spas, Industrial applications and others. The SMB feature variable speed thanks to permanent magnet motors and integrated variable frequency drives. This ensures energy savings and quiet operation.

SMB booster sets are available with one, two or three pumps using either the e-HME series (horizontal multistage pumps) or the e-SVE series (vertical multistage pumps).

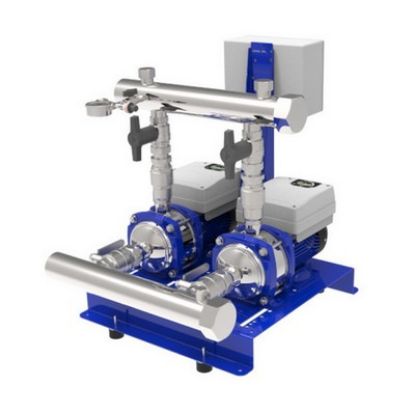

Lowara SMB20 HM Pump

The Lowara SMB series is a variable speed booster set range, designed for water pressure boosting and transfer in applications such as apartments, single- and multi-family houses, condominiums, residential buildings, Hotels, restaurants, spas, Industrial applications and others. The SMB feature variable speed thanks to permanent magnet motors and integrated variable frequency drives. This ensures energy savings and quiet operation.

SMB booster sets are available with one, two or three pumps using either the e-HME series (horizontal multistage pumps) or the e-SVE series (vertical multistage pumps).

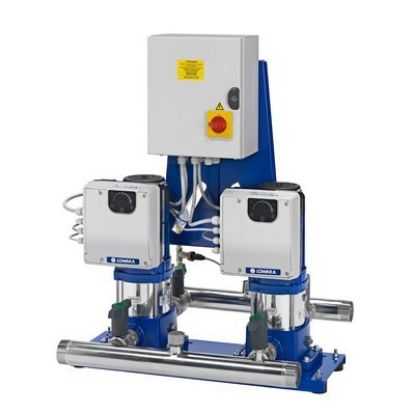

Lowara SMB20 SV Pump

The Lowara SMB series is a variable speed booster set range, designed for water pressure boosting and transfer in applications such as apartments, single- and multi-family houses, condominiums, residential buildings, Hotels, restaurants, spas, Industrial applications and others. The SMB feature variable speed thanks to permanent magnet motors and integrated variable frequency drives. This ensures energy savings and quiet operation.

SMB booster sets are available with one, two or three pumps using either the e-HME series (horizontal multistage pumps) or the e-SVE series (vertical multistage pumps).
