Landscape Watering Systems Limited. Strainers

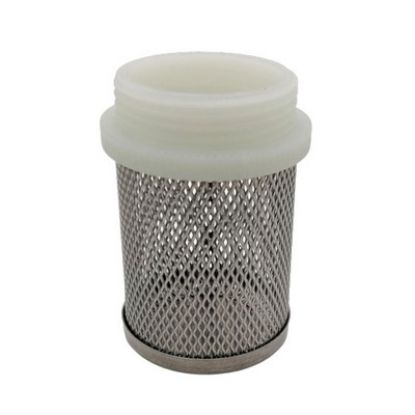

Foot Valve Strainer

Stainless steel mesh strainer are used for basic filtration to stop larger debris from entering pipe work when the water supply is from a non-clean source i.e. lakes and rivers. Usually combined with a non-return valve to create a Foot Valve this will also stop water from draining back to the supply and potentially loss of prime with a pump/pump set.

½" BSPM Stainless Steel Foot Valve Strainer STRAIN015
¾" BSPM Stainless Steel Foot Valve Strainer STRAIN020
1" BSPM Stainless Steel Foot Valve Strainer STRAIN025
1¼" BSPM Stainless Steel Foot Valve Strainer STRAIN032
1½" BSPM Stainless Steel Foot Valve Strainer STRAIN040
2" BSPM Stainless Steel Foot Valve Strainer STRAIN050
3" BSPM Stainless Steel Foot Valve Strainer STRAIN080
4" BSPM Stainless Steel Foot Valve Strainer STRAIN100

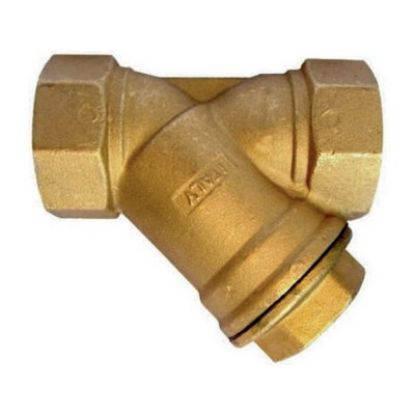

Brass Y-Strainer

Brass Y-Strainer with female BSP parallel threads. Complete with a 304L stainless steel mesh filter screen. PN16 rated. Temperature rated -20 to 180°C. Ideal for catching larger debris that is within a water supply.

WRAS approved from ½" to 2"

½" BSPP In-line Brass Y-Strainer with a 0.5mm stainless steel mesh. WRAS YSTRAIN015
¾" BSPP In-line Brass Y-Strainer with a 0.5mm stainless steel mesh. WRAS YSTRAIN020
1" BSPP In-line Brass Y-Strainer with a 0.5mm stainless steel mesh. WRAS YSTRAIN025
1¼" BSPP In-line Brass Y-Strainer with a 0.5mm stainless steel mesh. WRAS YSTRAIN032
1½" BSPP In-line Brass Y-Strainer with a 0.5mm stainless steel mesh. WRAS YSTRAIN040
2" BSPP In-line Brass Y-Strainer with a 0.5mm stainless steel mesh. WRAS YSTRAIN050
2½" BSPP In-line Brass Y-Strainer with a 0.8mm stainless steel mesh YSTRAIN065
3" BSPP In-line Brass Y-Strainer with a 0.8mm stainless steel mesh YSTRAIN080
4" BSPP In-line Brass Y-Strainer with a 1.2mm stainless steel mesh YSTRAIN100

Bronze Y-Strainer

Bronze Y-Strainer with female BSP parallel threads. Complete with a stainless steel mesh filter screen. PN16 rated. Temperature rated -10 to 110°C. Ideal for catching larger debris that is within a water supply.

½" BSPP In-line Bronze Y-Strainer with a 0.4mm stainless steel mesh. YSTRAIN015BZ
¾" BSPP In-line Bronze Y-Strainer with a 0.4mm stainless steel mesh. YSTRAIN020BZ
1" BSPP In-line Bronze Y-Strainer with 0.4mm stainless steel mesh YSTRAIN025BZ
1¼" BSPP In-line Bronze Y-Strainer with 0.5mm stainless steel mesh YSTRAIN032BZ
1½" BSPP In-line Bronze Y-Strainer with 0.5mm stainless steel mesh YSTRAIN040BZ
2" BSPP In-line Bronze Y-Strainer with 0.8mm stainless steel mesh YSTRAIN050BZ
2½" BSPP In-line Bronze Y-Strainer with 0.8mm stainless steel mesh YSTRAIN065BZ
3" BSPP In-line Bronze Y-Strainer with 0.8mm stainless steel mesh YSTRAIN080BZ
4" BSPP In-line Bronze Y-Strainer with 0.8mm stainless steel mesh YSTRAIN100BZ

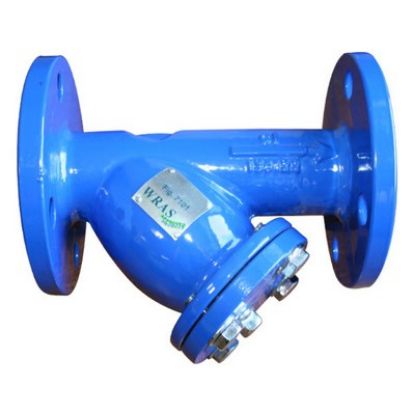

Cast Iron Flanged Y-Strainer

Ductile Iron Flanged Y-Strainer with PN16 flanges. Complete with a stainless steel mesh filter screen. Ideal for catching larger debris that is within a water supply.Temperature rated -10 to 120°C. Fitted with a brass plug for drainage. WRAS Approved for potable water supplies.

DN50/2" PN16 Epoxy Coated Cast Iron Y-Strainer. 1.5mm SS Mesh Screen. WRAS YSTRAINCIF050
DN65/2½" PN16 Epoxy Coated Cast Iron Y-Strainer. 1.5mm SS Mesh Screen. WRAS YSTRAINCIF065
DN80/3" PN16 Epoxy Coated Cast Iron Y-Strainer. 1.5mm SS Mesh Screen. WRAS YSTRAINCIF090
DN100/4" PN16 Epoxy Coated Cast Iron Y-Strainer. 3mm SS Mesh Screen. WRAS YSTRAINCIF100
DN125/5" PN16 Epoxy Coated Cast Iron Y-Strainer. 3mm SS Mesh Screen. WRAS YSTRAINCIF125
DN150/6" PN16 Epoxy Coated Cast Iron Y-Strainer. 3mm SS Mesh Screen. WRAS YSTRAINCIF150

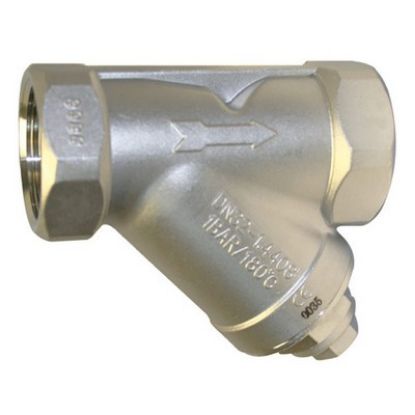

Stainless Steel Y-Strainer

Stainless Steel CF8M Y-Strainer with female BSP parallel threads. Complete with a 316 stainless steel 1mm mesh filter screen and drain plug. 800 psi rated. Temperature rated -20 to 176°C. Ideal for catching larger debris that is within a water supply.

½" BSPP In-line CF8M Stainless Steel Y-Strainer with a 1mm stainless steel mesh YSTRAIN015SS
¾" BSPP In-line CF8M Stainless Steel Y-Strainer with a 1mm stainless steel mesh YSTRAIN020SS
1" BSPP In-line CF8M Stainless Steel Y-Strainer with a 1mm stainless steel mesh YSTRAIN025SS
1¼" BSPP In-line CF8M Stainless Steel Y-Strainer with a 1mm stainless steel mesh YSTRAIN032SS
1½" BSPP In-line CF8M Stainless Steel Y-Strainer with a 1mm stainless steel mesh YSTRAIN040SS
2" BSPP In-line CF8M Stainless Steel Y-Strainer with a 1mm stainless steel mesh YSTRAIN050SS
2½" BSPP In-line CF8M Stainless Steel Y-Strainer with a 1mm stainless steel mesh YSTRAIN065SS
3" BSPP In-line CF8M Stainless Steel Y-Strainer with a 1mm stainless steel mesh YSTRAIN080SS
