Landscape Watering Systems Limited. Rainwater Harvesting Accessory

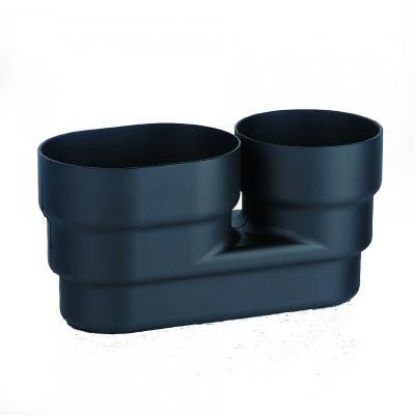

3P Calmed Inlet

Calmed inlets are designed to be installed within the bottom of a tank. They are ideally suited for a rainwater harvesting tanks where there is the possibility of sediment build up in the bottom of the tank.

Suitable for connecting toDN100 to DN250 sewer pipe allowing for the incoming water to be deposited directly at the bottom of the tank.

DN110 Calmed Inlet for Rain Tanks, prevents disturbance of sediment. 3PCALMEDINLET SKU: 4000100
DN150 Giant Calmed Inlet for Rain Tanks, prevents disturbance of sediment. 3PCALMEDINLET150 SKU: 4000150
DN200 Giant Calmed Inlet for Rain Tanks, prevents disturbance of sediment. 3PCALMEDINLET200 SKU: 4000155
DN250 Giant Calmed Inlet for Rain Tanks, prevents disturbance of sediment. 3PCALMEDINLET250 SKU: 4000160

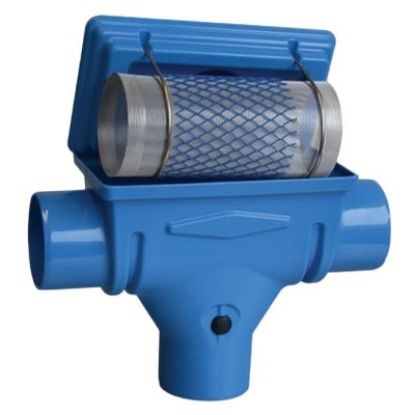

3P Compact Filter

The 3P Compact Filter is ideal where there is little room and no height difference between inlet and outlet. Low maintenance and self cleaning; depending on the level of solids, regular inspection recommended. All inlets and outlets DN100 (110mm OD). The 3p Compact Filter is recommended for use on areas up to 150m².

Rainwater Filter for roof areas up to 150m² Min inlet/outlet height diff (HYD) 3PCOMPACTFILTER SKU: 1000100

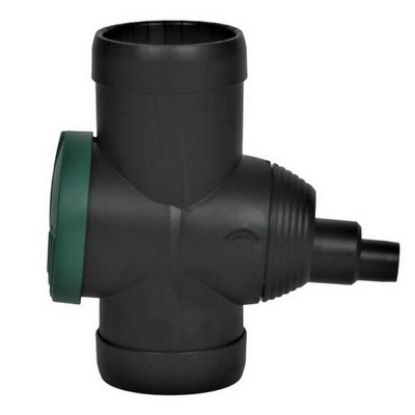

3P Filter Block Collector

The 3P Filter Collectors are designed to be installed on guttering down pipes; to divert rainwater into a water storage tank while maintaining the highest possible water quality.

Designed to be compatible with all types or guttering down pipe. The 3P Filter Collector can be fitted to 68mm - 110mm round or 65mm - 75mm square down pipes. Maximum recommended roof area is 90m².

Rain Water Filter Collector/Divertor for 68mm - 110mm down pipes - black 3PFILCOLBLCK SKU: 2000840
Rain Water Filter Collector/Divertor for 68mm - 110mm down pipes - grey 3PFILCOLGREY SKU: 2000820
Rain Water Filter Collector/Divertor for 68mm - 110mm down pipes - white 3PFILCOLWHT SKU: 2000850

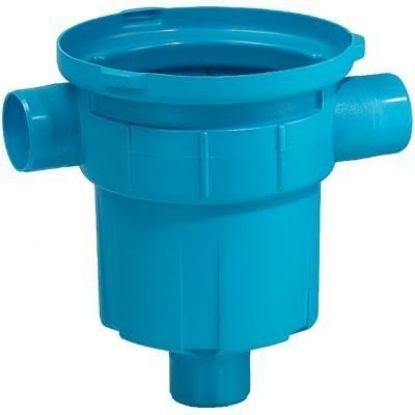

3P Garden Filter

The 3P Garden Filter is a total retention rainwater filter with integrated dirt collection basket, with a mesh of 1.0mm. The basket is easily removeable for cleaning. Design for installation in a rainwater tank turret or before the tank using the 3P telescopic extension set with lid. This filter is highly efficient and suitable for irrigation system and other non potable water systems.

All inlets and outlets at DN 100 (110mm OD), one inlet can also be used as an emergency overflow. The cleaned rainwater flows through the bottom connection into the rainwater tank. The 3P Garden Filter is recommended for roof areas up to 200m².

Extension and Lid only for Garden Filter 3PGARDENFILTEREXT SKU: 1000560
Rainwater Filter with Plastic Mesh Basket. For roof areas up to 200m² No Lid 3PGARDENFILTERPB SKU: 1000600
Rainwater Retention Filter Plastic Mesh Roof up to 200m². Ext' for direct burial 3PGARDENFILTERPBEXT SKU: 1000620
Rainwater Filter with SS Mesh Basket. For roof areas up to 200m² No Lid 3PGARDENFILTERSB SKU: 1000630
Rainwater Filter with SS Mesh Roof up to 200m². Ext' for direct burial 3PGARDENFILTERSBEXT SKU: 1000640

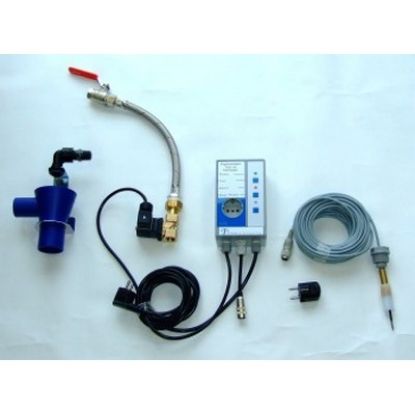

3P Mains Water Top-up

Automatic mains water top-up Controller kit for rainwater tanks

3P Mains Water Top Up Compact. Incl ½" Brass 230v Valve & Tundish & Probe 3PLEVELCON015P SKU: 5000590
3P Poly Large Tundish with Bracket. 50mm Bottom Outlet and 39mm side Overflow. 3PTUNDISHKIT SKU: 5000410

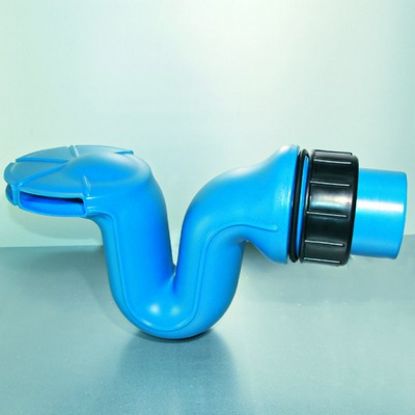

3P Overflow Siphons

Adequate overflow is essential for optimum tank water quality as inadequate overflow is the primary cause of odour in failed rainwater systems.

Underground Basic Overflow Siphon c/w circular sprung rodent barrier (HYD) 3POVERBASRB SKU: 4000310
110mm Plastic Tank Overflow Siphon Uno c/w rodent trap and odour barrier 3POVERUNO SKU: 4000260

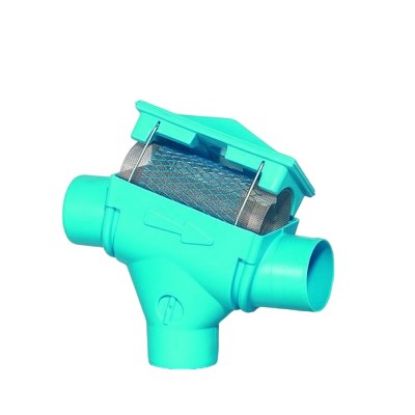

3P Patronen Filter

The 3P Patronen Filter are designed for installation within rainwater tanks. Due to the inclined angle of the filter sieve and its very smooth surface structure the dirt is rinsed into the sewer. The filter cartridge is stainless steel within a plastic housing. This low maintenance and self cleaning filter is ideal for installation in shallow dig tanks. all inlets and outlets are DN100 (110mm OD) with a 66mm drop between inlet and outlet. The 3P Patronen Filter is recommended for use on areas of up to 200m².

Patronen Filter for roof areas up to 200m² 66mm Drop accross Inlet & Outlet 3PPATFIL SKU: 1000300

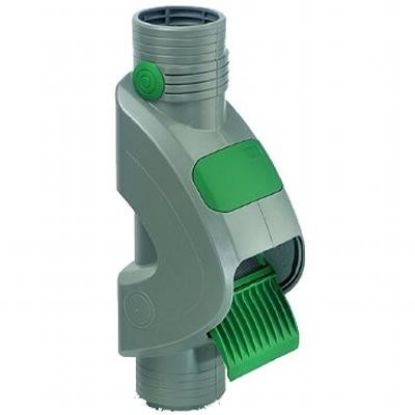

3P Rainus Filter

The 3P Rainus filters debris from rainwater, allowing the clean water to continue through the downpipe. Ideal for retro-fitting systems which have not yet had a filter fitted, the Rainus is also suited to use with ponds and infiltration systems.

The 3P Rainus Filter is designed to fit downpipes of 80mm - 100mm diameter. These downpipes are usually found in either aluminium or zinc; with UK Adapters is also compatible with 68 mm round UK downpipes and 65 mm square downpipes. Maximum recommended roof area is 90m²,

3P Rainus Black Rain Water Down Pipe Filter - for use with underground tanks 3PRAINUS SKU: 2000700

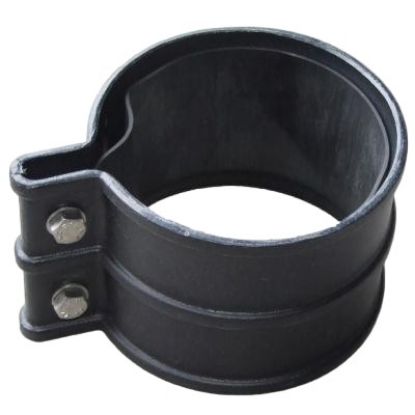

3P Rapid Connector

The 3P Rapid Connector is design as a quick and simple solution for connecting rainwater filters with 110mm spigots within rainwater harvesting tanks. These would replace any 110mm sockets that could be used instead.

Please note this product is not designed to be directly buried in the ground. Any buried connections should be completed with the appropriate fittings.

Rapid Connector for 110mm. Ideal for connection of filters within tanks 3PRAPIDCON110 SKU: 4000750

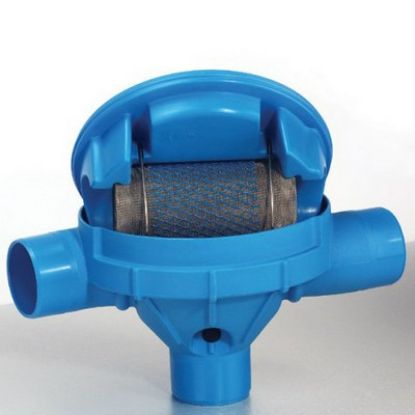

3P Sinus Filter

Rainwater filter for installation within rainwater tanks. Ideal for retro-fitting in existing tanks, because the 3P Sinus Filter has no height difference between rainwater inlet and outlet to the waste water sewer.

Rainwater Filter with stainless steel screen. For roof areas up to 200m² 3PSINUSFILTERSF SKU: 1000200

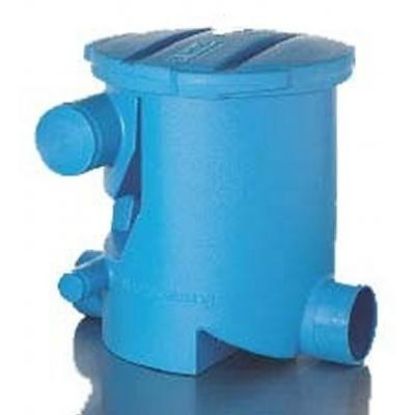

3P Volume Filter

The 3P Volume Filters is a complete rainwater filter with self cleaning filtration screen. With its 2 step cleaning step which works independently of flow available. The steep design of the filter screen means dirt is continuously cleaned away to waste. Designed for installation within a rainwater tank turret or before the tank using the 3P telescopic extension set with lid. This filter is highly efficient and suitable for irrigation systems and other non-potable water systems.

All inlets and outlets at DN 100 (110mm OD), with a 300mm drop between inlet and outlet. The cleaned rainwater flows through the bottom connection into the rainwater tank. The 3P Volume Filter is recommended for roof areas up to 450m².

Black Lid for Garden & Volume Rainwater Filter 3PGFVFBLCKLID SKU: 1000506
Telescopic Extension only for 3P Volume Filter 3PVF1TELEXT SKU: 5000560
Rainwater Filter with lid for roof areas up to 450m² 3PVOLUMEFILTERVF1 SKU: 1000595
Rainwater Filter with bottom filtered outlet and lid For roof areas up to 450m² 3PVOLUMEFILTERVF1CMB SKU: 1000592
Rainwater Filter with telescopic extension and lid. For roof areas up to 450m² 3PVOLUMEFILTERVF1TEX SKU: 1000597
Rainwater Filter with lid for roof areas up to 1150m² 3PVOLUMEFILTERVF2 SKU: 1000700
