Home Pumps & Aerators Pump Controls Pressure Controls & Switches Grundfos PM Start. Cut in 2.2 Bar Cut out @ 0 flow. Max 10a/1.5kW motor

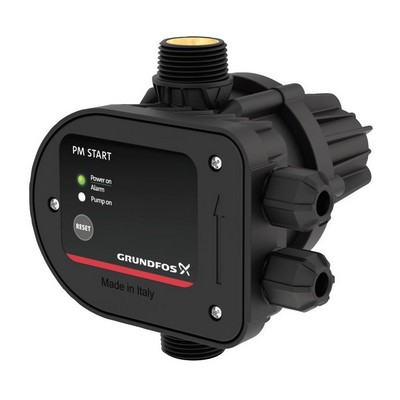

Picture of Grundfos PM Start. Cut in 2.2 Bar Cut out @ 0 flow. Max 10a/1.5kW motor
Picture of Grundfos PM Start. Cut in 2.2 Bar Cut out @ 0 flow. Max 10a/1.5kW motor

Grundfos PM Start. Cut in 2.2 Bar Cut out @ 0 flow. Max 10a/1.5kW motor

STOCK CODE: GFOSPM-START Supplier SKU: 93159128

Grundfos PM START is a pressure manager designed for automatic start and stop control of Grundfos and other water supply pumps.
PM START is a basic control solution suitable for applications where start and stop operation of the pump according to consumption is needed.
PM START starts the pump when a start pressure of 2.2 bar is reached, and the pump is kept running as long as there is sufficient flow.
PM START stops the pump in case of water shortage and protects it from dry-running.
In case of a temporary blackout, the pressure manager automatically resumes operation once power has been restored.

Minimum flow - 1m³ per hour
Start Pressure not adjustable - 2.2 bar fixed
Fitted non-return valve
Max operating pressure of 10 bar
1" BSP Inlet/Outlet
Max P1 1500 watts
Rated Current 10 amps
No plug fitted
Water Temp range 0-60°C
