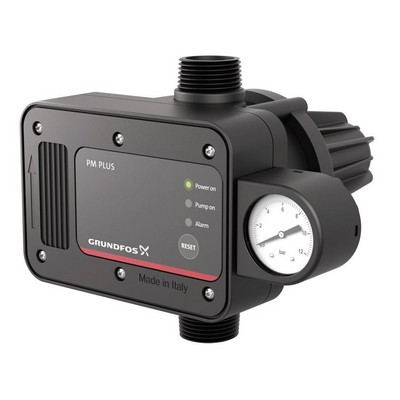

Grundfos PM Plus. Cut in 1.5-3 Bar Cut out @ 0 flow. Max 10a/1.5kW motor

STOCK CODE: GFOSPM-PLUS Supplier SKU: 93264956

Grundfos PM PLUS is a pressure manager designed for automatic start/stop control of Grundfos or other pumps for water supply in domestic applications.
With adjustable start pressure, PM PLUS can easily be customised to your specific application. It can be installed in systems with or without a pressure tank.
PM PLUS features automatic protection that stops the pump in case of water shortage, preventing dry running. In case of temporary power outage, PM PLUS automatically resets itself once power is restored.

Minimum flow - 1m³ per hour
Start Pressure adjustable 1.5 to 3 bar
Fitted non-return valve
Max operating pressure of 12 bar
1" BSP Inlet/Outlet
Max P1 1500 watts
Rated Current 10 amps
No plug fitted
Water Temp range 0-60°C
